| FEATURES : | ||
| BODY | : | 1 Piece, 2piece union bonet type with lapped seat. |
| STEM | : | Choice of replacement stem tip, v point, regulating or blunt stems for exact flow requirements. |
| NEEDLE | : | PRECISION GROUND, LAPPED TIP FOR PERFECT METAL TO METAL SAELING. |
| LUBRICATION | : | Anti-seize lubricants on stem threads for easy operations & long life. |
| GLAND TESTING | : | Adjustable. |
| TESTING | : | EACH VALVE IS 100% TESTED TO ENSURE LEAK TIGHTNESS AT SEAL SHELL, & GLAND. |
Valves
Our company is considered as one of the topmost manufacturers and importers of Ss Valves. Incorporating new and revised designs, specially engineered to meet the exacting demands and requirements of the petroleum and chemical industries.
Our valves are produced by employing the best raw materials, carefully selected, correctly identified and analysed. The machining is carried out with the aid of the latest type equipment according to the most up-to-date methods.
We are pleased to introduce ourselves as Manufacturers & Exporters of valves almost all types for a wide spectrum of users in the Process and Chemical, Refineries & Petrochemicals, Fertilizers, Drugs and Pharmaceuticals, Thermal Power Stations, Nuclear and Atomic Power Stations, Textiles, Dyes and Intermediates, Paints & Varnishes, Sugar, Breweries and Distilleries, Soaps and Detergents, Steel Plants, Food and Oil industry, Solvent Extraction Plants, Sewage, Effluent & Water Treatment, Cooling Water, Ship Yards and Marine Management, Water works, Pulp & Paper, LPG Bottling Plants, Onshore & Offshore Platforms, Slurry and Ash handling.
Stainless Steel, Carbon Steel, Alloy Steel Valves Manufacturer, Supplier and Exporter in India.

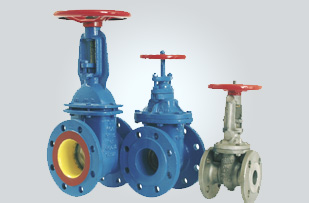

Gate Valve
The extensive range of Gate Valve - rising type offered by us is developed in strict compliance with the API 600 standards, so that the end product is defect free. Widely used in engineering related industries, these valves are appreciated for their high performance, durability and corrosion resistant features. We offer these rising type valves in various sizes, pressure ratings and other technical specifications as per the detailed specifications provided by our customers.
Specification
| Pressure Rating | Class 150 & Class 300 |
| Manufacturing Standard | Generally conforming to API 600 |
| Range | 50mm - 1200mm (Higher Sizes on request.) |
| Type | gate Valves, Non Rising Gate Valves, Rising Type Gate Valves |

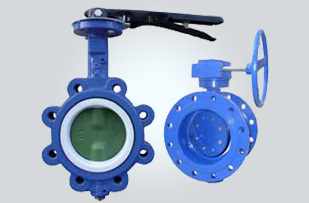

Butterfly Valve
Butterfly Valves is a valve, which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. These valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The butterfly is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway.
Specification
| Size | 50mm to 1600 mm |
| Specification | General manufacturing standard, IS: 13095/BS: 5155/AWWA: C-504 |
| Application | Water, gas, oil etc |
| Type | Flanged Butterfly Valves, Lug Type Butterfly Valves |

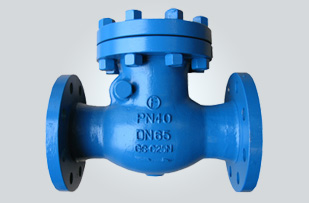

Swing Check Valve
The swing check variation is a low pressure drop unit based on a hinged disc. Swing Check Valves are suitable for low velocity applications with infrequent velocity reversals. The valve can be fitted with external weights to allow faster closure to reduce water hammer on flow reversal. External systems can also be added to force the valve closed in the event of a local fire.
Specification
| Size | 50 MM TO 600 MM (Single Door Type) 600 MM TO 1200 MM (Multi Door Type) |
| Specification | IS: 5312 (Part-I & II), BS: 1868 |
| Application | Water, oil etc |
| Type | Cast Iron Swing Check Valves |

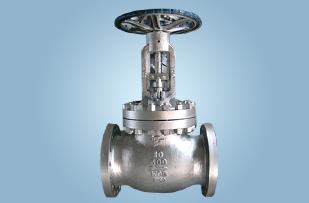

Globe Valve
We are a renowned Globe Valves Manufacturer and Exporter. The Globe Valves offered by us have been fabricated from the best quality raw material, using sophisticated technology. The Globe Valves have found various industrial applications like Industrial Globe Valve, Carbon Steel Globe Valve, Non Return Valves, Cast Iron Valves, Carbon Steel Globe Valve, Cast Steel Non-Return Valve Swing Type, Flanged Ended Non Return Valves is available in diverse sizes, grades, and specifications. Avail the Globe Valves at nominal market prices.

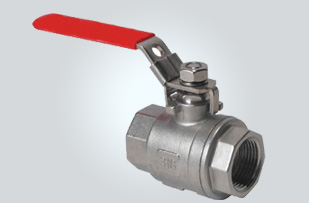

Ball Valve
We are widely acknowledged for manufacturing and supplying quality-assured range of Stainless Steel Ball Valves. These products are fabricated by using high-grade raw material and advanced machinery at the well sophisticated production premise. Moreover, our esteemed patrons can avail these products at the most market-leading price.
Specification
| Body | Two Piece, No Welding |
| Size | 1/4", 3/8", 1/2", 3/4", 1" |
| Material | Different grades of materials like SS 304 / SS 316 / SS 316 L - Nace / Hastelloy C / Monel / Inconel offered on request |
| End Connections | NPT / BSPP / BSPT / METRIC |
| Stem | Rolled Stem Threads for Enhanced Cycle Life |

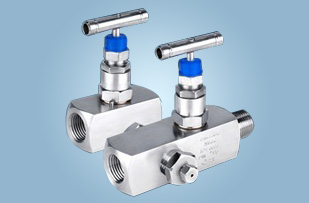

Needle Valves
Our company has established itself as a leading manufacturer, trader and supplier of superior quality Needle Valves in the market at present. We always ensure the on-time delivery for all of our products. These are made available to the customers at industry leading rates and as per the set industry standards. These are devices that allow electrically operated equipment to be connected to the primary alternating current (AC) power supply in a building. Electrical sockets differ in voltage and current rating, shape, size and type of connectors.
Features
- Free from shock
- Eco-friendly in nature
- Convenient to install
| MATERIAL OF CONSTRUCTION | |
| BODY (WITH INTEGRAL SEAT) | S.S, BRASS, CARBON STEEL, MONEL |
| STEM | S.S316 |
| GLAND PACKING | PTFE, GRAFOIL. |
| TEMPARTURE | -450 to 2500C |
| WORKING PRESSURE | UP to 10,000 Psig |
| ORIFICE DIA | 1/8” (3mm) to ½ “(12.7mm) |
| NOMIAL SIZE RANGE | 1/8 “to 2” |
| HANDLE | CARBON STEEL, ALUMINIMUM OR S.S |
| END Connections |
SCREWED FEMALE/ MALE, TUBE END, SOCKETWELD, BUTTWELD & FLANGEND. |
